Search Data

Users can create selections based on specific search criteria. Two types of selection criteria are supported: Missing Data and Value. Using Missing Data will create selections on the graph during periods of time where missing data is identified. Using Value will create selections that are greater than, equal to, or less than the value a user enters.

1. Open a telemetry report or graph measurements on a report.

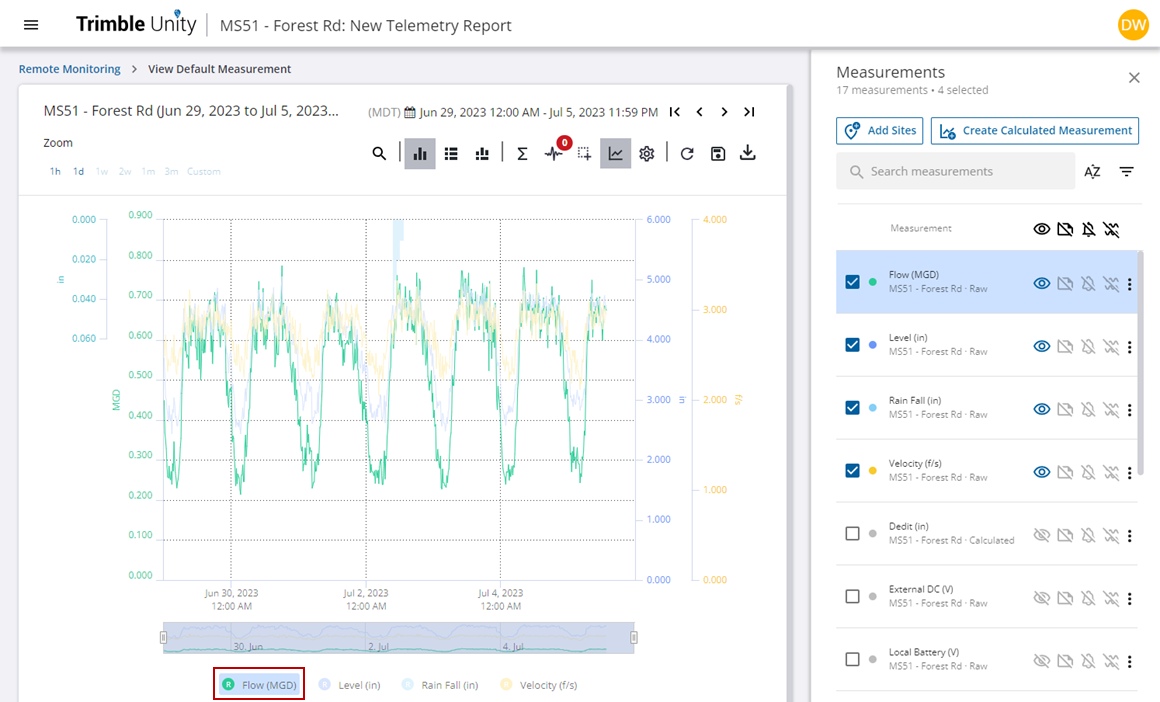

2. Hold the Shift key and click the measurement you want to highlight.

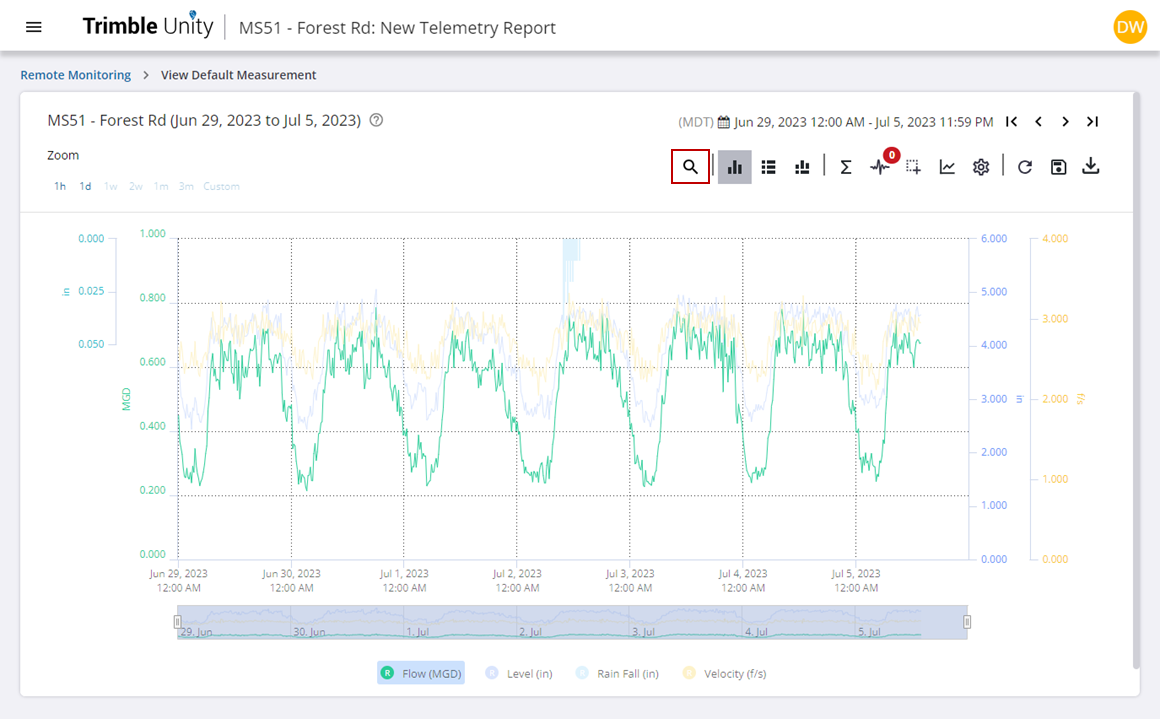

3. Click Search data.

NOTE: You can also press and hold the Shift key and then click and drag on the graph to select a time frame you want to highlight. Repeat this to select multiple time frames, if desired.

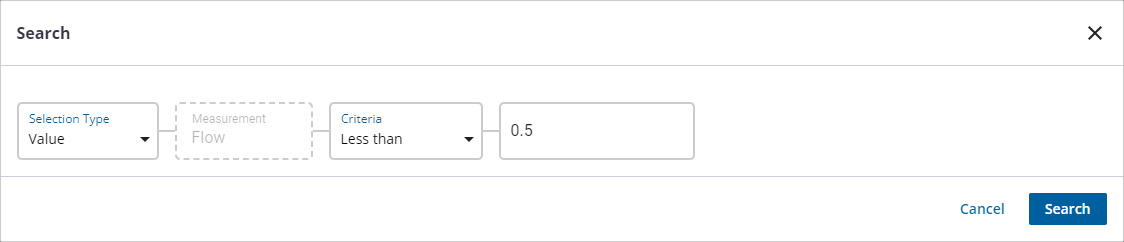

From the Search panel, you can choose a Selection Type and Criteria (such as greater than, equal, or less than). Then enter a value to be searched by.

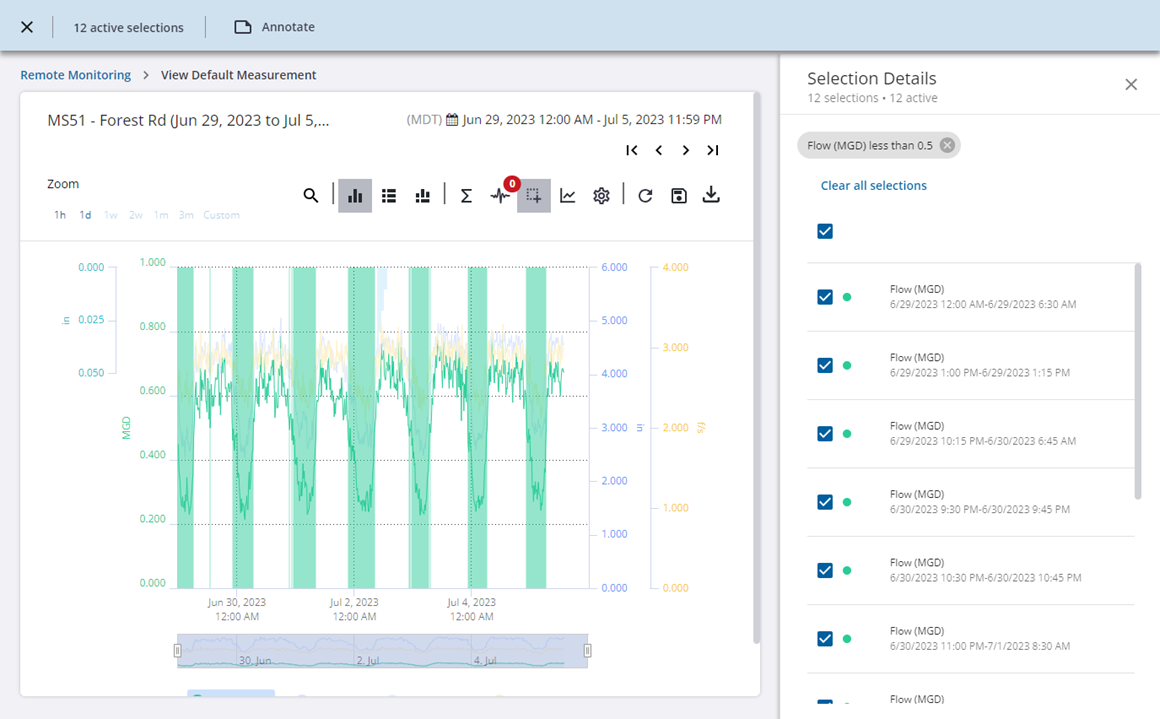

4. Click Search. Any data that matches the search criteria is highlighted on the graph.

From here you can add any annotations as needed. See Annotate Measurements for more information.
