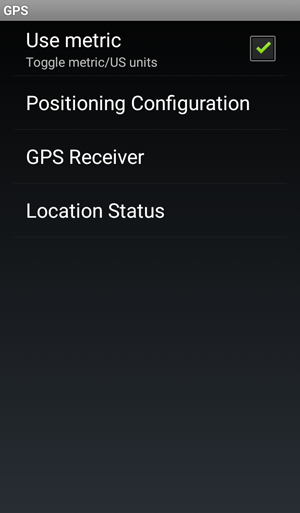

GPS

Use these settings to select a GPS positioning profile and to connect to a GPS receiver.

Android		iOS

Use metric (Android only)

Use metric units or US units. Metric units are the default.

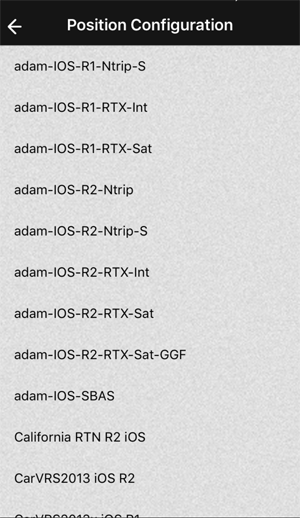

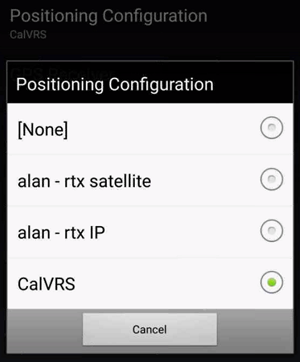

Positioning Configuration

Select a high-accuracy real-time positioning configuration you wish to use such as RTX, VRS™, or SBAS. The default is None.

Android		iOS

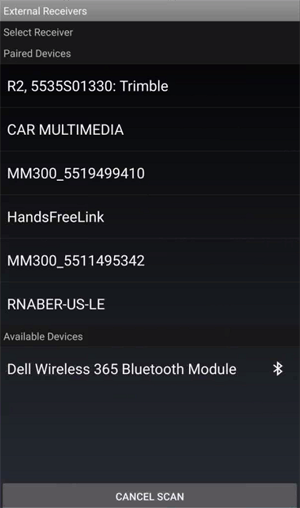

GPS Receiver

This section lists any devices that have been connected to the mobile device using Bluetooth wireless technology. Select which receiver you want to connect to. Trimble Unity supports the following Trimble receivers:

• Geo 7
• Juno® T41™
• MobileMapper® 300
• Nomad® 1050
• R1 and R2
• Ranger™ 3
• TMR1
• Yuma® 2

Android		iOS

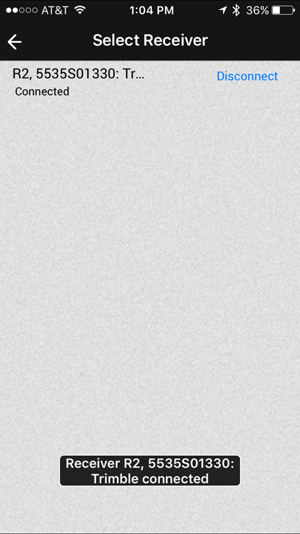

If a device is already connected to the mobile device, a Bluetooth icon appears next to the name of the device:

To connect to a receiver, tap on the receiver name and then tap Connect.

Tap Settings to configure how the receiver is connected to the mobile device:

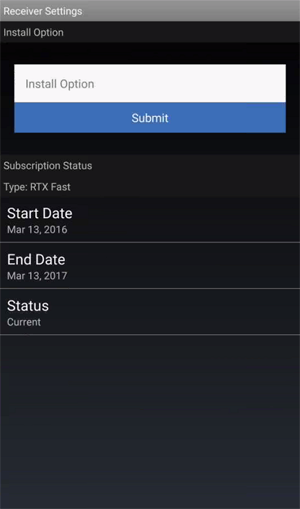

Android only: If you need to activate an RTX subscription on the receiver, tap Install Option and then enter the code provided to you by Trimble. The Start Date and End Date fields show the RTX subscription period. To view your RTX subscription status or to activate RTX on the receiver, please use the GNSS Status app.

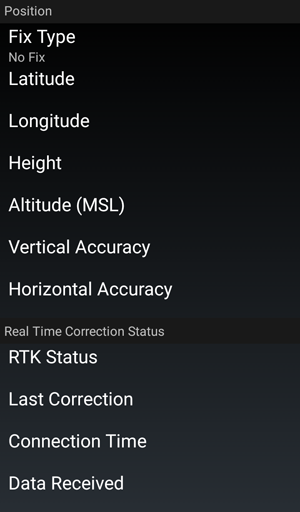

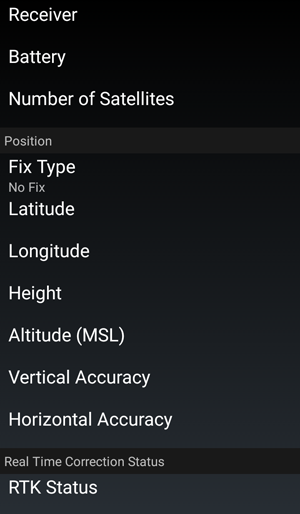

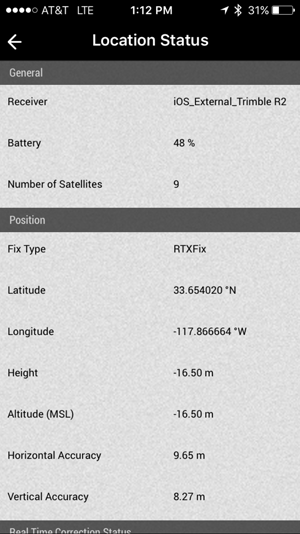

Location Status

Shows you information about the receiver.

Android
iOS
