Create a Trimble Unity Admin User for the WM ArcGIS Connector

It is recommended that you create a dedicated admin user with a strong password, to be used as the integration user between Trimble Unity WM and ArcGIS. This admin user will not use your organization’s allocated work management user subscriptions. It is solely used as an integration user with ArcGIS.

1. Log in to Trimble Unity as an administrator.

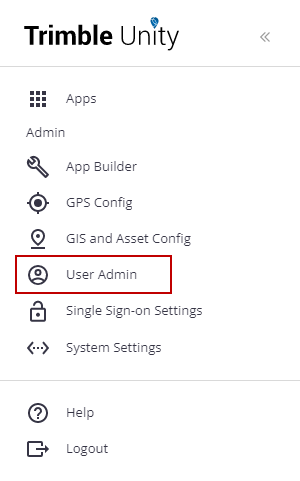

2. Click User Admin in the menu.

3. Click Add User from the Users & Subscriptions list.
4. Enter a First Name and Last Name. For example, you can use “ArcGIS Connector.”
5. Enter the Username. For example, you can use “AGOL.”
6. Enter the Password. Make sure it is a strong password.
7. Enter the Email address. Use your admin email address.
8. Under Local Office, select all the configured local offices.
9. Under System Access, select Administrator.

Now that the admin user is created, you will use this user in the following sections when you configure the ArcGIS feature layers.
